Mazda 2: Air Bag Module and Pre-tensioner Seat Belt Deployment Procedures

WARNING:

• A live (undeployed) air bag module or pre-tensioner seat belt may accidentally operate (deploy) when it is disposed of and cause serious injury. Do not dispose of a live (undeployed) air bag module and pre-tensioner seat belt. If the SSTs (Deployment tool and Adapter harness) are not available, consult the nearest Mazda representative for assistance.

CAUTION:

• Deploying the air bag modules and pre-tensioner seat belts inside the vehicle may cause damage to the vehicle interior. When the vehicle is not to be scrapped, always deploy the air bag modules and pre-tensioner seat belts outside the vehicle.
• If the vehicle is to be scrapped, or when disposing of any air bag modules or pre-tensioner seat belts, operate (deploy) them inside the vehicle by following the deployment procedure below and using the SST (Deployment tool).
• When disposing of an operated (deployed) air bag module and pre-tensioner seat belt, refer to "AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES".

Deployment Procedure for Inside of Vehicle

1. Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL)).

2. Move the vehicle to an open space, away from strong winds, and close all of the vehicle doors and windows.

3. Switch the ignition to off.

4. Disconnect the negative battery cable and wait for 1 min or more.

5. Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.

Driver-side Air Bag Module

WARNING:

• The driver-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag module, make sure to operate (deploy) both driver-side air bag module inflators simultaneously, following the procedure below.

NOTE:

• The SSTs, two types of adopter harnesses (for inflators No.1 and No.2) and two deployment tools are to be used to operate (deploy) the driver-side air bag module.

1. Remove the driver-side air bag module.

(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION).

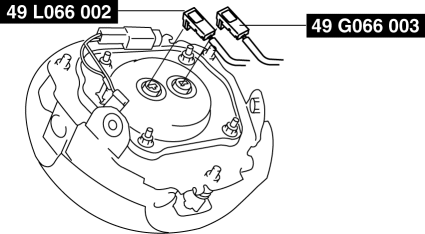

2. Connect the SST (Adapter harness) to the driver-side air bag module as shown in the figure.

3. Install the driver-side air bag module.

(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION).

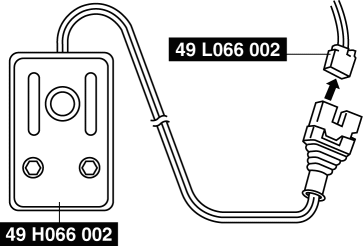

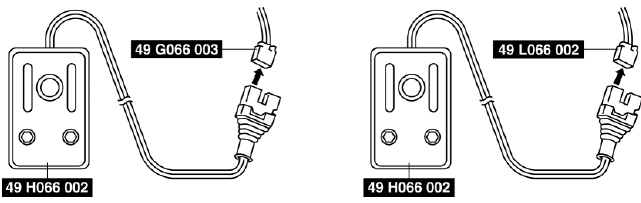

4. Connect the SST (Deployment tool) to the SST (Adapter harness).

5. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6. Verify that the red lamp on the SST (Deployment tool) is illuminated.

7. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

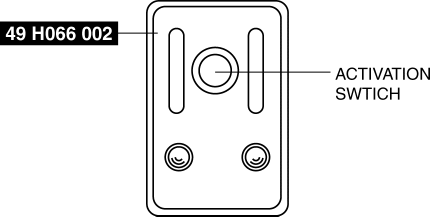

8. Press the activation switch on the SST (Deployment tool) connected with 49 L066 002 (a yellow connector) of the SST (Adapter harness), and after 3 s, press the activation switch on the other SST (Deployment tool) to operate (deploy) the air bag module (both inflators).

WARNING:

• Verify that air bag module operation (explosive) sound occurs twice. If no operation (explosive) sound was heard or a single operation (explosive) sound was heard, both inflators would not have operated (deployed) properly. This may cause serious injury if the air bag module operates (deploy) unexpectedly. If the two operation (explosive) sounds are not heard, perform Step 8 again. If a total of two operation (explosive) sounds cannot be verified even though Step 8 is performed again, leave the air bag module alone for 30 min or more before approaching it again.
• The air bag module is very hot immediately after it is operated (deployed). You can get burned. Do not touch the air bag module for at least 15 min after deployment.

9. Disconnect the SST (Deployment tool) form the SST (Adapter harness).

Passenger-side Air Bag Module

WARNING:

• The passenger-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag module, make sure to operate (deploy) both passenger-side air bag module inflators simultaneously, following the procedure below.

NOTE:

• The SSTs, two types of adapter harnesses (for inflators No.1 and No.2) and two deployment tools are to be used to operate (deploy) the passenger-side air bag module.

1. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION).

2. Disconnect the passenger-side air bag module connector.

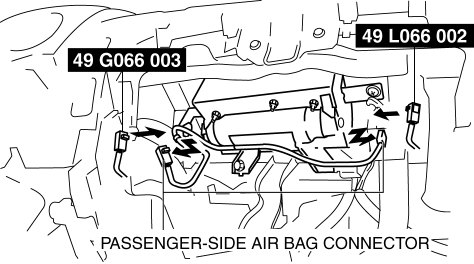

3. Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

4. Connect the SST (Deployment tool) to the SST (Adapter harness).

5. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6. Verify that the red lamp on the SST (Deployment tool) is illuminated.

7. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

8. Press the activation switch on the SST (Deployment tool) connected with 49 L066 002 (a yellow connector) of the SST (Adapter harness), and after 3 s, press the activation switch on the other SST (Deployment tool) to operate (deploy) the air bag module (both inflators).

WARNING:

• Verify that air bag module operation (explosive) sound occurs twice. If no operation (explosive) sound was heard or a single operation (explosive) sound was heard, both inflators would not have operated (deployed) properly. This may cause serious injury if the air bag module operates (deploy) unexpectedly. If the two operation (explosive) sounds are not heard, perform Step 8 again. If a total of two operation (explosive) sounds cannot be verified even though Step 8 is performed again, leave the air bag module alone for 30 min or more before approaching it again.
• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

9. Disconnect the SST (Deployment tool) form the SST (Adapter harness).

Side Air Bag Module

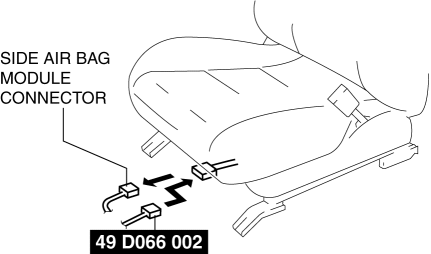

1. Disconnect the side air bag module connector.

2. Connect the SST (Adapter harness) to the side air bag module as shown in the figure.

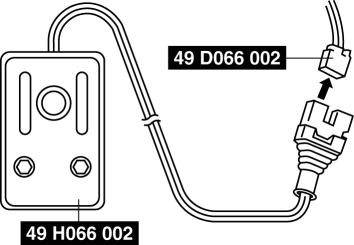

3. Connect the SST (Deployment tool) to the SST (Adapter harness).

4. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

5. Verify that the red lamp on the SST (Deployment tool) is illuminated.

6. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

7. Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

WARNING:

• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

8. Disconnect the SST (Deployment tool) from the SST (Adapter harness).

Curtain Air Bag Module

1. Remove the following parts:

1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION).
2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION).
3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION).
4. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION).
5. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION).
6. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION).
7. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION).
8. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION).
9. Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION).
10. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION).
11. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION).
12. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION).
13. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION).
14. Rain sensor cover (vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION).
15. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION).
16. Headliner (See HEADLINER REMOVAL/INSTALLATION).

2. Disconnect the curtain air bag module connector.

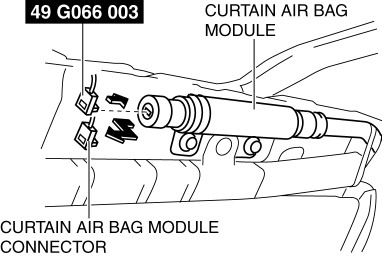

3. Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

4. Connect the SST (Deployment tool) to the SST (Adapter harness).

5. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6. Verify that the red lamp on the SST (Deployment tool) is illuminated.

7. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

8. Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

WARNING:

• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

9. Disconnect the SST (Deployment tool) from the SST (Adapter harness).

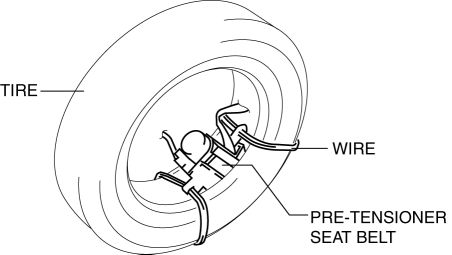

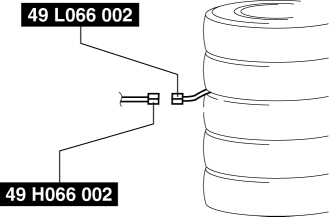

Pre-tensioner Seat Belt

1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION).

2. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION).

3. Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION ).

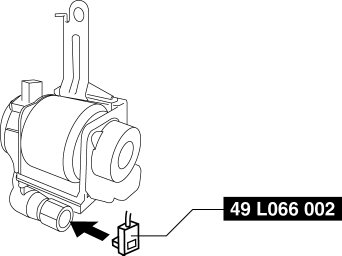

4. Remove the pre-tensioner seat belt and connect the SST (Adapter harness) as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION).

5. Install the pre-tensioner seat belt.

6. Connect the SST (Deployment tool) to the SST (Adapter harness).

7. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8. Verify that the red lamp on the SST (Deployment tool) is illuminated.

9. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

10. Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

WARNING:

• The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

11. Disconnect the SST (Deployment tool) from the SST (Adapter harness).

Deployment Procedure for Outside of Vehicle

1. Inspect the SST (Deployment tool).

(See INSPECTION OF SST (DEPLOYMENT TOOL)).

2. Switch the ignition to off.

3. Disconnect the negative battery cable and wait for 1 min or more.

4. Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.

Driver-side Air Bag Module

WARNING:

• The driver-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag module, make sure to operate (deploy) both driver-side air bag module inflators simultaneously, following the procedure below.

1. Remove the driver-side air bag module.

(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION).

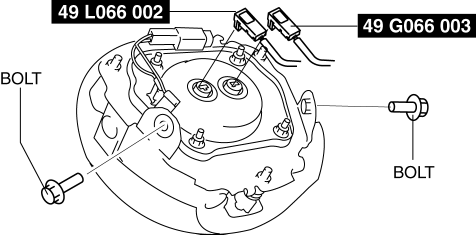

2. Connect the SST (Adapter harness) to the driver-side air bag module as shown in the figure.

3. Install the bolts to the driver-side air bag module.

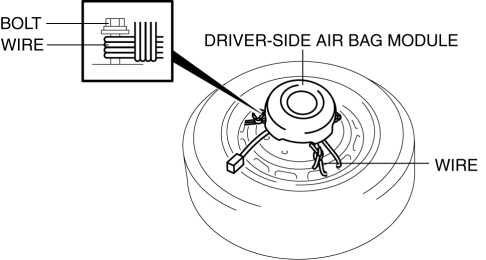

4. Place the driver-side air bag module on the center of the tire wheel with the padded surface facing up. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2 {0.002 in2} or more) through the wheel and the bolt installation holes of the air bag module at least 4 times.

WARNING:

• If the air bag module is not properly installed to the tire wheel, serious injury may occur when the module is operated (deployed). When installing the air bag module to the tire wheel, make sure the padded surface is facing up.

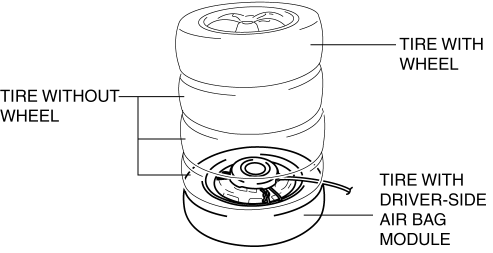

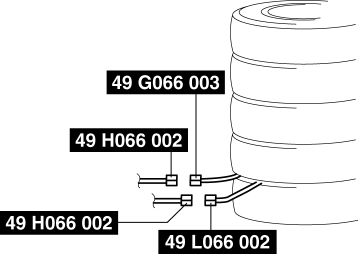

5. Stack three tires without wheels on top of the tire with the driver-side air bag module, and then stack another tire with a wheel on the very top.

6. Secure the tires with wire.

7. Connect the SST (Deployment tool) to the SST (Adapter harness).

8. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9. Verify that the red lamp on the SST (Deployment tool) is illuminated.

10. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

11. Press the activation switch on the SST (Deployment tool) connected with 49 L066 002 (a yellow connector) of the SST (Adapter harness), and after 3 s, press the activation switch on the other SST (Deployment tool) to operate (deploy) the air bag module (both inflators).

WARNING:

• Verify that air bag module operation (explosive) sound occurs twice. If no operation (explosive) sound was heard or a single operation (explosive) sound was heard, both inflators would not have operated (deployed) properly. This may cause serious injury if the air bag module operates (deploy) unexpectedly. If the two operation (explosive) sounds are not heard, perform Step 8 again. If a total of two operation (explosive) sounds cannot be verified even though Step 8 is performed again, leave the air bag module alone for 30 min or more before approaching it again.
• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12. Disconnect the SST (Deployment tool) from the SST (Adapter harness).

Passenger-side Air Bag Module

WARNING:

• The passenger-side air bag module is a dual inflator type. If one inflator is forced to operate (deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air bag module, make sure to operate (deploy) both passenger-side air bag module inflators simultaneously, following the procedure below.

1. Remove the glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION).

2. Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION).

3. Connect the SSTs (Adapter harness) to the passenger-side air bag module as shown in the figure.

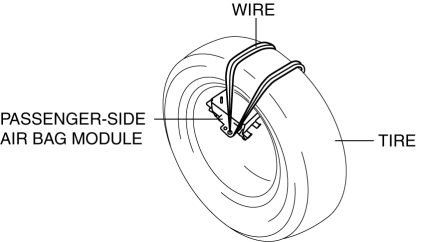

4. Place the padded surface of the passenger-side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2 {0.002 in2} or more) through the tire and around the bolts at least 4 times as shown in the figure.

WARNING:

• If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

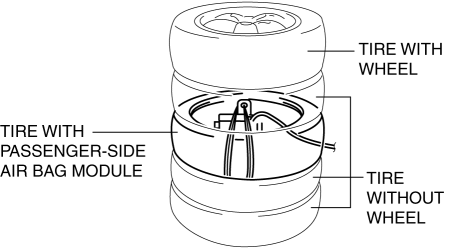

5. Stack the tire with the passenger-side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the passenger-side air bag module, and then stack another tire with a wheel on the very top.

6. Secure the tires with wire.

7. Connect the SST (Deployment tool) to the SST (Adapter harness).

8. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9. Verify that the red lamp on the SST (Deployment tool) is illuminated.

10. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

11. Press the activation switch on the SST (Deployment tool) to operate (deploy) the passenger-side air bag module (both inflators).

WARNING:

• Verify that air bag module operation (explosive) sound occurs twice. If no operation (explosive) sound was heard or a single operation (explosive) sound was heard, both inflators would not have operated (deployed) properly. This may cause serious injury if the air bag module operates (deploy) unexpectedly. If the two operation (explosive) sounds are not heard, perform Step 8 again. If a total of two operation (explosive) sounds cannot be verified even though Step 8 is performed again, leave the air bag module alone for 30 min or more before approaching it again.
• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12. Disconnect the SST (Deployment tool) from the SST (Adapter harness).

Side Air Bag Module

1. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION).

2. Remove the front seat back trim and pad. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION).

3. Remove the side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION).

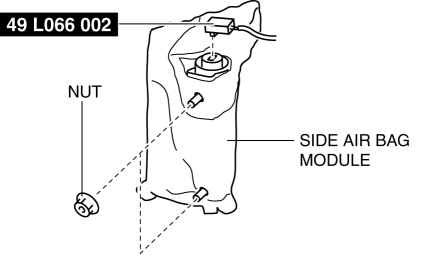

4. Install the nuts to the side air bag module as shown in the figure, and connect the SST (Adapter harness).

5. Install the nuts to the side air bag module.

6. Place the padded surface of the side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2 {0.002 in2} or more) through the tire and around the bolts at least 4 times.

WARNING:

• If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

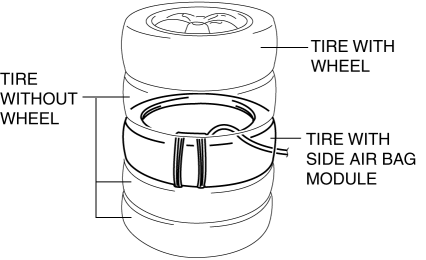

7. Stack the tire with the side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the side air bag module, and then stack another tire with a wheel on the very top.

8. Secure the tires with wire.

9. Connect the SST (Deployment tool) to the SST (Adapter harness).

10. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

11. Verify that the red lamp on the SST (Deployment tool) is illuminated.

12. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

13. Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

WARNING:

• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

14. Disconnect the SST (Deployment tool) from the SST (Adapter harness).

Curtain Air Bag Module

1. Remove the following parts:

1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION).
2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION).
3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION).
4. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION).
5. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION).
6. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION).
7. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION).
8. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION).
9. Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION).
10. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION).
11. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION).
12. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION).
13. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION).
14. Rain sensor cover (vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION).
15. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION).
16. Headliner (See HEADLINER REMOVAL/INSTALLATION).

2. Remove the curtain air bag module.

(See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION).

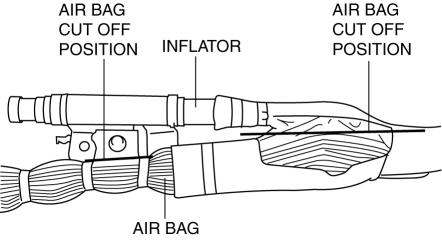

3. Cut off the air bag part of the curtain air bag module at the position shown in the figure.

WARNING:

• Be sure not to crush the pipe on the side where it is cut. If it is crushed completely, the interior pressure of the pipe will build up and can cause it to explode during air bag module operation (deployment).

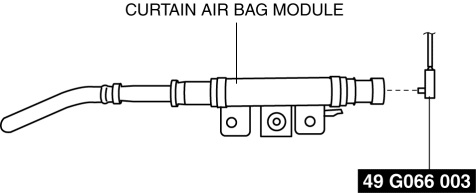

4. Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

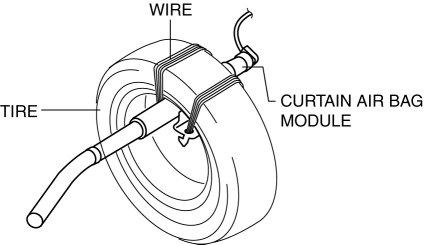

5. Secure the curtain air bag module to the tire, by wrapping a wire (cross section 1.25 mm2 {0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

WARNING:

• If the air bag module is not properly installed to the tire, serious injury may occur when the module is operated (deployed). Make sure to install the air bag module securely.

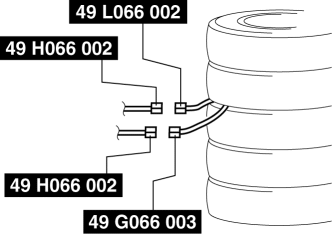

6. Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the curtain air bag module, and then stack another tire with a wheel on the very top.

7. Secure the tires with wire.

8. Connect the SST (Deployment tool) to the SST (Adapter harness).

9. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10. Verify that the red lamp on the SST (Deployment tool) is illuminated.

11. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

12. Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

WARNING:

• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

13. Disconnect the SST (Deployment tool) from the SST (Adapter harness).

Pre-tensioner Seat Belt

1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION).

2. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION).

3. Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION).

4. Remove the pre-tensioner seat belt and connect the SST (Adapter harness) as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION).

5. Put the pre-tensioner seat belt inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25mm2 {0.002in2} or more) through the tire and the bolt installation holes at least 4 times.

WARNING:

• If the pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is operated (deployed). When installing the pre-tensioner seat belt to the tire, make sure the pre-tensioner part is inside the tire.

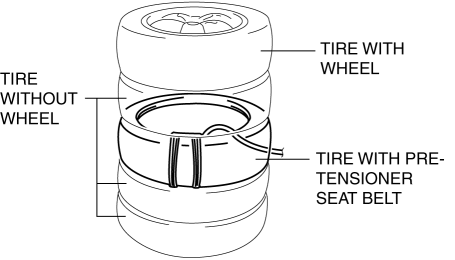

6. Stack the tire with the pre-tensioner seat belt on to of two tires without wheels. Stack a tire without a wheel on top of the tire with the pre-tensioner seat belt, and then stack another tire with a wheel on the very top.

7. Secure the tires with wire.

8. Connect the SST (Deployment tool) to the SST (Adapter harness).

9. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10. Verify that the red lamp on the SST (Deployment tool) is illuminated.

11. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

12. Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

WARNING:

• The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned.

  Do not touch the air bag module for at least 15 min after deployment.

13. Disconnect the SST (Deployment tool) from the SST (Adapter harness).

AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES

WARNING:

• A live (undeployed) air bag module or pre-tensioner seat belt may accidentally operate (deploy) when it is disposed of and cause serious injury. Always refer to the "AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES" and dispose of air bag modules and pre-tensioner seat belts in a deployed condition.
• The air bag modules and the pre-tensioner seat belts are very hot immediately after they are deployed. You can be burned. Do not touch an air bag module and pre-tensioner seat belt for at least 15 min after deployment.
• Pouring water on the deployed air bag module and pre-tensioner seat belt is dangerous. The water will mix with the residual gases to form a gas that can make breathing difficult. Do not pour water on the deployed air bag module and pre-tensioner seat belt.
• The deployed air bag module or pre-tensioner seat belt may contain deposits of sodium hydroxide, a caustic byproduct of the gas-generated combustion. If this substance gets into your eyes or on your hands, it can cause irritation and itching. When handling the deployed air bag module and pre-tensioner seat belt, wear gloves and safety glasses.
• Due to the adoption of 2-step deployment control in both the driver and passenger-side air bag modules, depending on the impact force, it is possible that inflator No.2 might not operate (deploy). Before disposing of the air bag module, always follow the inflator deployment procedures and verify the complete operation (deployment) of inflators No.1 and 2.

1. Remove the deployed air bag module or pre-tensioner seat belt.

2. Put the air bag module or pre-tensioner seat belt in a plastic bag, seal the bag, and then dispose of it.

READ NEXT:
